Installation Variants

Of course, the adaptability of the CHORWO applies not only to the interior design as such, but also to the condition of
the walls. Thanks to the sophisticated technology, the CHORWO frame can be perfectly adjusted to masonry as well as drywall elements.



Installation options:

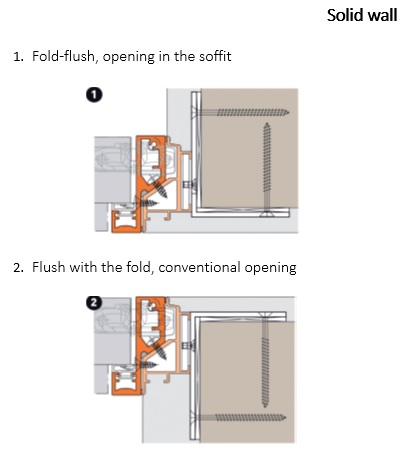

Solid wall
1 Folding flush with each other, opening into the reveal
2 Flush-sided flush, conventional opening

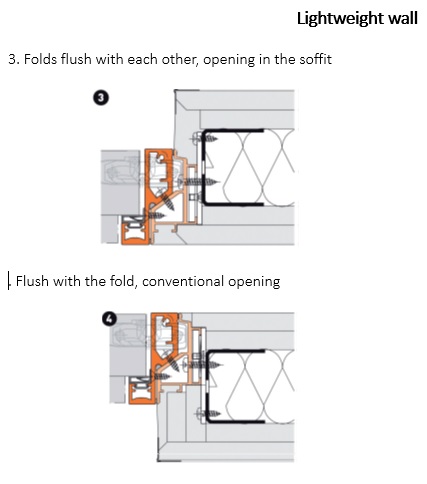

Lightweight wall
3 Flush-sided flush, opening into the reveal
4 Flush-sided flush, conventional opening

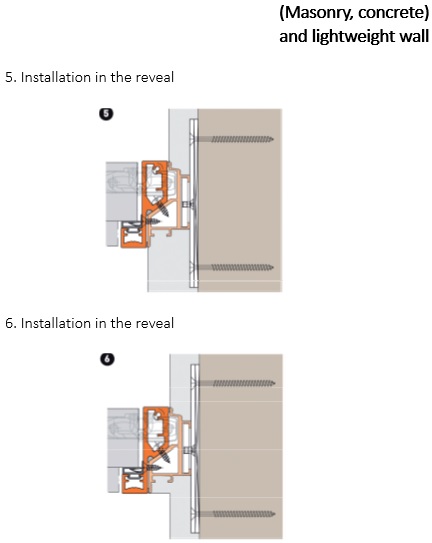

Solid wall (masonry, concrete) and lightweight wall
5 Installation in the reveal
6 Mounting in the reveal
